| Product Name |

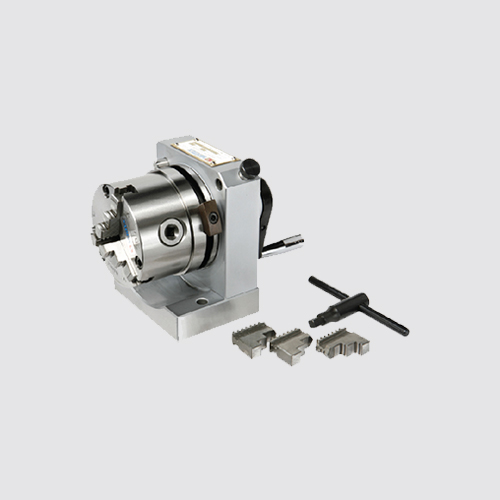

VERTEX 3-Jaws Punch Former |
| Model Variants |
V-PS-80J (standard), V-PS-80JS (with sine plate) |
| Manufacturer |
VERTEX Machinery Works Co., Ltd. (Taiwan) |
| Function |
Holding and positioning punches or round workpieces for precision grinding |
| Clamping Capacity |
2 mm to 70 mm diameter workpieces |
| Indexing Capability |
24 positions (every 15°) |
| Indexing Accuracy |
Approx. 10 arc-seconds |
| Material |
High-grade hardened tool steel |
| Chuck Type |
Three-jaw self-centering chuck |
| Center Hole Diameter |
Approx. 30 mm |
| Front Chuck Opening |
Approx. 16 mm |
| Radius Grinding Capability |
Convex radius up to 48 mm, Concave radius up to 100 mm |
| Movement Type |
Rotational with precision adjustment |
| Base Option (JS Model) |
Built-in sine plate for angle setting and compound grinding |
| Grinding Wheel Compatibility |
Up to approx. 70 mm in diameter |
| Dimensions |
Approx. 210 × 110 × 185 mm (with base) |
| Weight |
Approx. 8.7–11 kg depending on model |
| Applications |
Tool & die making, precision punch grinding, radius forming, and small part grinding |
| Country of Origin |
Taiwan |
