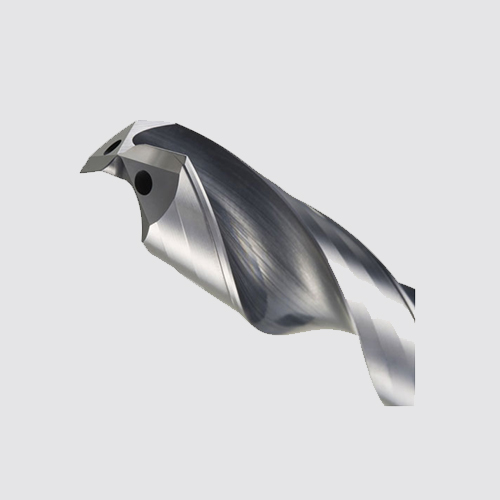

Dijet Strike Drill
-
Thinning-shaped cutting edges, which lower thrust and enhance hole-biting accuracy from entry to exit.
-
A reinforced margin design, ensuring better rigidity, reduced friction, and consistent guidance.
-
Smooth flute surfaces that optimize chip formation and evacuation—even in deep hole drilling (5D–8D), eliminating the need for step drilling in most materials.
Description
Description
| Category | Details |
|---|---|
| Tool Type | Solid Carbide Drill |
| Applications | Through-holes in steel, mold steel, stainless steel |
| Depth Options (Drilling Depth) | 2D, 3D, 4D, 5D, 8D configurations available |
| Diameter Range | 1 mm–16 mm (depending on depth variant) |
| Variants (Catalog No.) | – EZN2D: 2D depth, Φ1–Φ14 (131 items) – EZN3DCH: 3D depth, Φ3–Φ16 (115 items) – EZN4D: 4D depth, Φ3–Φ14 (111 items) – EZN5DCH: 5D depth, Φ3–Φ16 (115 items) – EZN8DCH: 8D depth, Φ3–Φ14 (111 items) |
| Key Design Features | – Thinning shape reduces thrust and improves bite-in accuracy – Margin shape enhances rigidity and reduces friction – Smoothing of flute surfaces for superior chip evacuation, even at 5D–8D depths |
